Jay-Nart has 10 HDD rigs ranging from 24,000 lbs pullback to 330,000 lbs pullback. We also have a fleet of water trucks and a trenching unit.

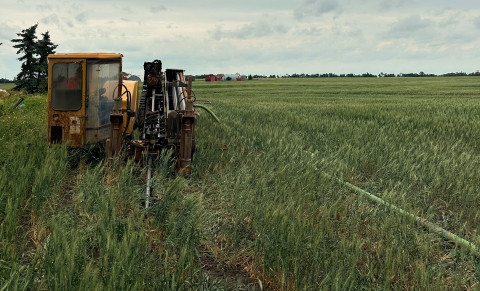

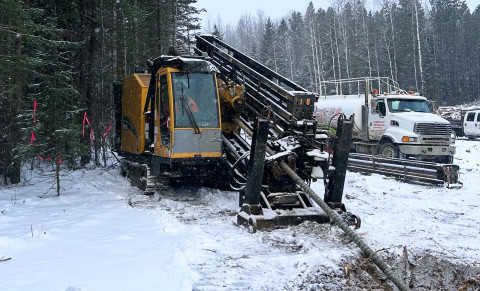

HDD Rigs

1.D7x11

  • 7,000 lbs thrust/pullback capability
  • 1100 ft-lbs of rotational torque
  • 50 gpm onboard pump
  • Self contained fluid unit for all climates
  • Compact track mounted rig allows for access to tighter locations

2. D9x16

  • 9,000 lbs thrust/pullback capability
  • 1600 ft-lbs of rotational torque
  • 50 gpm onboard pump
  • Self contained fluid unit for all climates
  • Compact track mounted rig allows for access to tighter locations

3. D36x50

  • 36,000 lbs thrust/pullback capability
  • 5000 ft-lbs of rotational torque
  • 50 gpm onboard pump
  • Self contained fluid unit for all climates
  • Track mounted rig allows for access to more remote locations

4. D80x100 - 2 UNITS

  • 80,000 lbs thrust / pullback capability
  • 10,000 ft-lbs rotational torque
  • 200 gpm onboard pump
  • Self contained fluid unit for all climates
  • Track mounted rig allows for access to more remote locations

5. D100x140 - 2 UNITS

  • 100,000 lbs thrust / pullback capability
  • 14,000 ft-lbs rotational torque
  • 230gpm gpm onboard pump
  • On board crane
  • 20 foot drill stems
  • Self contained fluid unit for all climates
  • Track mounted rig allows for access to more remote locations

6. D330x500

  • 330,000 lbs thrust / pullback capability
  • 50,000 ft-lbs rotational torque
  • 200gpm - 650 gpm onboard pump
  • Self contained fluid unit for all climates
  • Track mounted rig allows for access to more remote locations

Hydro-Vac Trucks: 2 UNITS

  • RamVac HX-12 Tandem Axle
  • 1300 gallon Water Storage
  • 12 cubic yards (2500gl) Debris tank
  • 3000 CFM Blower
  • 330 Degree Working Radius boom

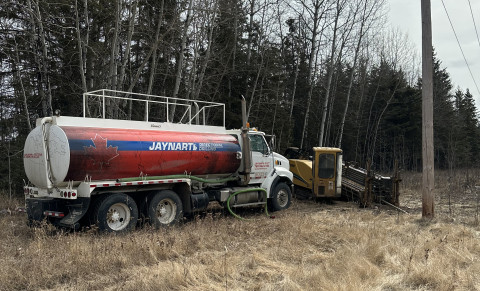

Water Trucks: 4 UNITS

  • Sterling LT 9500
  • Offroad package
  • 105 bbl Hamms tank
  • 3" Bowie enclosed hydraulic pump for use in all climates
  • Sprayer bar
  • 3" and 4" discharge with minimum 60ft of hose
  • 6" dump valve on back

Trenchers: 2 UNITS

    1.RT350

    • Up to 48" depth trench
    • Up to 4" pipe
    • Backfill blade

      2.RT1250

      • Up to 72" depth trench
      • Up to 6" pipe
      • Backfill blade

Semcams North West Wapiti Loop Pipeline

Completed crossings of NPS 8 with lengths between 500 meters and 550 meters with depths of up to 57 meters.  Projects were completed utilizing DataTraX wireline technology.

Keyera Fort Saskatchewan Pipeline Expansion Project

Completed bores with pipe bundle combinations of NPS 20, NPS 10 and two NPS 8 with crossing lengths of up to 170 meters.

Inter Pipeline Polaris Project

PX9 - Edmonton Connection - Pipe diameter of NPS 24 with lengths of up to 350 meters crossing roads, wetlands and existing underground facilities.

PX6 - Christina Lake Expansion - Pipe diameter of NPS 30 with lengths up to 170 meters crossing roads and existing underground facilities.

Camp Nakamun Septic Revitalization Project

Multiple crossings of NPS 4 with lengths over 400 meters.

Sherwood Park and Beaumont Area Subdivisions Water and Sewer Installation

4” DR11 HDPE and 3” DR11 HDPE
Mainline and services drilled in at engineered and surveyed depths.
